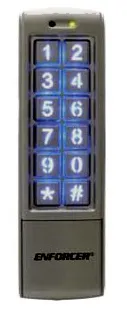

JSK-2323-SDQ Stand-Alone Mullion-Style Weatherproof Keypad
- 12~24 VAC/VDC operation
- 2 Multi-colored status LEDs
- Back-lit keys for easy nighttime use
- 2 Egress inputs and 1 door sensor input
- Optical tamper sensor for added security
- 2 Form C relays (1 Amp @ 30VDC each)
- Relay output time 1~99 seconds or toggle
- Output #2 can be used to activate doorbell
- Circuitry is potted with epoxy for outdoor use
- Dimensions: 6" x 1-3/4" x 15/16" (152 x 44 x 24 mm)
- IP65 weatherproof rating, rugged aluminum construction
- 1,010 Users (Output #1: 1,000 users, Output #2: 10 users)
- EEPROM memory protects programmed information in case of power loss
- All features programmed directly from keypad - no need for external programmer
